How to Adjust Craftsman Hydrostatic Transmission?

Craftsman’s T3200 54-in. 24.0 HP riding mower and some other models are designed with a reliable and easy-to-maintain Hydrostatic Transmission system. However, things can go wrong over time and cause users to experience some common transmission issues, such as:

  • Craftsman hydrostatic transmission slipping
  • Craftsman hydrostatic transmission won’t engage
  • Craftsman hydrostatic transmission won’t move forward or backward (reverse)
  • Craftsman hydrostatic transmission slow reverse, won’t reverse, or may creep forward

Fortunately, you can fix them with some adjustments here and there.

Keep reading to discover those fixing adjustments that can help you get rid of such Craftsman riding mower hydrostatic transmission problems.

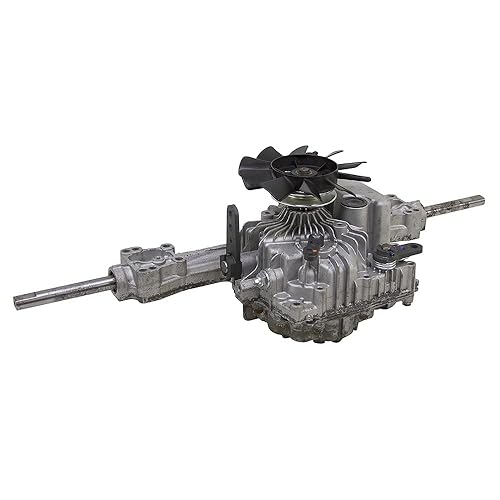

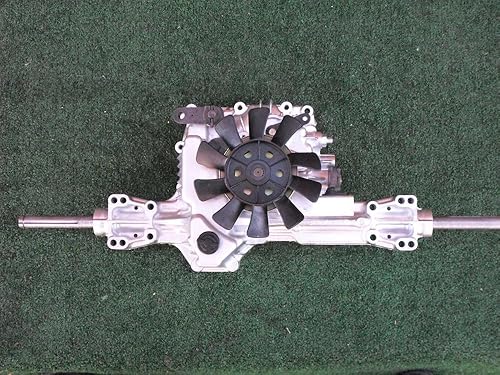

How to Adjust Craftsman Hydrostatic Transmission
How to Adjust Craftsman Hydrostatic Transmission

What Should You Do If Your Craftsman Hydrostatic Transmission Slips?

As the Craftsman ages, users may notice that the transmission struggles to stay in place and slips. One may also find that their mower also begins to lose speed as it heats up and if they continue mowing, their mower will finally cease moving after 20 minutes.

Such a commotion occurs when an old or contaminated trans fluid absorbs moisture and causes the fluid to aerate with water.

Required Adjustments:

If your Craftsman model comes with a drain and fills for the fluid, simply drain all the contaminated fluid out and fill your transmission with fresh fluid.

But the factory doesn’t provide drain and fill for some Craftsman models like its DYT4000 mower.

In that case, you have two Adjustment options to fix the problem.

First Way:

Park your mower safely in leveled area and switch off the engine. Then, jack up the mower sufficiently to gain a better look and access below the mower.

Now go underneath and you will see something like that shown in the below picture.

Drill a 1/2-inch hole in that area to drain the fluid out from the bottom and refill it with fresh transmission fluid.

Second Way:

Remove the axle and locate the factory fill plug. Turn it over and let all the foul fluid drain.

Bring a new fill plug, and fill your transmission with 20/50 Hydrostatic fluid. Replace the factory plug and bolt the mower back together.

Related Post: Disadvantages Of Hydrostatic Transmission (Explained)

How Do You Adjust a Craftsman Hydrostatic Transmission That Won’t Engage?

Sometimes users may also notice that their Craftsman won’t engage or move, no matter how many times they try even though it worked just fine during the most recent mowing session.

There are two possible causes for your Craftsman’s transmission problem:

  • The trans belt must be worn, badly damaged, or off.
  • Your transmission must have raised or twisted due to either brace bolt(s) coming off or bent bracket(s).

Required Adjustments:

Examine the condition of your transmission belt, if it is misaligned, loose, or not tensioned properly, adjust the alignment and tension of the belt correctly.

If you have a worn or damaged trans belt, replace the belt.

Next, check if brace bolts are tightened properly. If they are loose, stripped, or missing, tighten or replace them as necessary.

Examine the brackets for evidence of wear or bending. If the bracket(s) are bent, try straightening them out with pliers or a wrench. If needed, replace them with new ones.

What Should You Do If Your Craftsman Hydrostatic Transmission Won’t Move Forward or Reverse?

There are several reasons why your Craftsman will not move forward or backward. This can happen for a variety of reasons in some circumstances.

Here are some obvious reasons behind Craftsman not going forward or reverse:

  • Disengaged transmission disconnect mechanism.
  • Bent, broken or damaged shift lever and trans linkage.
  • Worn or stretched drive belt.
  • Issues with the Hydraulic pump pressure.
  • If the brake is seized up.

Required Adjustments:

The transmission disconnect on a Craftsman mower will be found at its rear end under the hitch. Check if the mechanism is stuck due to debris buildup.

If required, clear the jam and try to engage the disconnect correctly by following the directions in your mower’s user handbook.

Next, inspect the shift lever and transmission linkage for any issues.

Clean and service the damaged parts if found. Then lubricate it according to the mower’s user handbook.

Check and if necessary, replace the drive belt before re-adjusting the tension.

Examine the brake linkage and look whether it’s seized up or has damaged internal components and adjust the brake accordingly.

Also, check the fluid level and its condition because low hydraulic fluid on your trans can cause hydraulic pump pressure issues.

How Do You Adjust Craftsman Hydrostatic Transmission Slow Reverse?

Craftsman users may also witness that the reverse gradually fades and become too slow to the point it feels like not moving at all.

The slow reverse issue may arise due to the contaminated or low trans fluid. It may also occur due to:

  • faulty drive belts,
  • loose or misaligned control linkage, and
  • if the air gets inside the transmission.

Required Adjustments:

Inspect the trans fluid quality and level. Change the fluid with the correct recommended fluid type.

If needed, manually adjust the control linkage by

  • locating the adjustment bolt on the front of the mower’s right rear wheel and loosen it with your hand.
  • Slightly tighten the bolt but make sure it’s not too tight.
  • Turn on the ignition to start the mower and move the control lever forward until the mower no longer moves forward or backward.
  • Hold the lever in this position and turn the motor off.
  • Loosen the adjustment bolt while you hold the control lever in the same position.
  • Tighten the bolt by moving the control lever to the neutral position.

Examine the transmission belt and adjust the tension, align, or replace it if needed.

Check if air got inside the transmission and if it does, purge the system by following the below instructions:

  1. Place your mower or tractor safely on a clear and open leveled surface with the engine off and parking brake set.
  2. Disengage the transmission by depressing the freewheel control (see “TO TRANSPORT” section of your user manual).
  3. Start the engine while sitting in the tractor seat. After starting the engine, turn the throttle control to the slow setting.
  4. Slowly release the clutch/brake pedal while holding the motion control lever in the neutral position.
  5. Hold the motion control lever fully forward for five (5) seconds. Hold the lever in full reverse for five (5) seconds. Rep this step three (3) times.

Warning: Be mindful that the drive wheels may move at any time during step 5.

  • Set the motion control lever to neutral. Set the parking brake and turn off the engine.
  • Engage transmission by pressing the freewheel control (see “TO TRANSPORT” section of your manual).
  • Start the engine while seated in the tractor seat. After starting the engine, reduce the throttle to half (1/2) speed. Repeat step 4.
  • Slowly advance the motion control lever, then reverse it when the tractor has moved roughly five (5) feet. Return the motion control lever to the neutral position after the tractor has moved about five (5) feet.
    Now, repeat this step three (3) times with the motion control lever.

Related Post: Craftsman Lawn Mower Won’t Start? Here Are the Solutions!

What to Do When Craftsman Hydrostatic Transmission Has No Reverse?

Sometimes with the new Craftsman, you may also encounter no reverse issue. In that scenario, you must conduct tranny and reverse both changes.

Required Adjustments:

How Do You Adjust Craftsman Hydrostatic Transmission That Creeps Forward?

Users may also encounter a situation where the mower moves forward normally, but when they put it back into neutral, it continues to creep forward. It mostly happens when your control arm needs to be readjusted accordingly.

This issue is often found with Craftsman models with a hydrostatic transmission with hand control like the Craftsman GT5000.
